QGZ series magnetic rodless cylinder
Structure characteristics 1. The cylinder block USES the south Korean DAG company high quality aluminum alloy tube, the hard anodic oxidation treatment.
2. The surface of the piston rod advance rolling hardening treatment, the hard chromium plating, fine grinding processing, has the good rust prevention, wear-resisting and so on characteristics.
3. Seal choose German park sporlan products, can be in no give oil situation work, low starting pressure, long service life.
4. Cylinder former end cover is equipped with oil bearing, friction coefficient is low.
Model selection QGZ 32 * 100 R
No QGZ - magnetic rodless pneumatic cylinder
32 - Bores
100 - Cylinder stroke
R - heat resistant type: R = viton seals, the highest temperature resistant 200 degrees. Ellipsis = general rubber seal.
Technical parameters
|
Working pressure
|
The compressed air filter
|
Cylinder diameter （mm)
|
Cylinder stroke
|
Magnetic retention (N)
|
|
Withstand voltage test pressure
|
1.05MPa
|
Magnet logarithmic 3
|
Magnet logarithmic 2
|
|
Working pressure
|
0.18 - 0.63MPa
|
15
|
50 - 1000
|
69
|
40
|
|
Environment and fluid temperature
|
-5 - 60
|
25
|
50 - 2000
|
210
|
130
|
|
Piston movement speed
|
100 - 400mm/s
|
32
|
50 - 2500
|
340
|
230
|
|
installation
|
level
|
40
|
50 - 3000
|
600
|
400
|

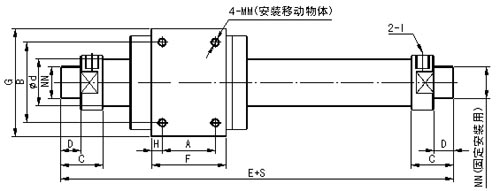

Physical size
|
Cylinder diameter
|
A
|
B
|
C
|
D
|
d
|
E
|
F
|
G
|
H
|
I
|
MM
|
NN
|
At 0.65 MPa in cylinder theory magnetic retention
|
|
15
|
24
|
40
|
23
|
10
|
18
|
110
|
40
|
50*50
|
8
|
M5
|
M5
|
M10
|
137.3N
|
|
25
|
30
|
44
|
30
|
13
|
28
|
164
|
44
|
64*64
|
7
|
Z1/8
|
M6
|
M24*1.5
|
362.8N
|
|
32
|
40
|
60
|
32
|
15
|
35
|
184
|
56
|
80*80
|
8
|
Z1/8
|
M6
|
M24*1.5
|
588.4N
|
|
40
|
50
|
60
|
36
|
16
|
43
|
204
|
70
|
86*86
|
10
|
Z1/4
|
M8
|
M33*1.5
|
921.8N
|
|
|
|
|
